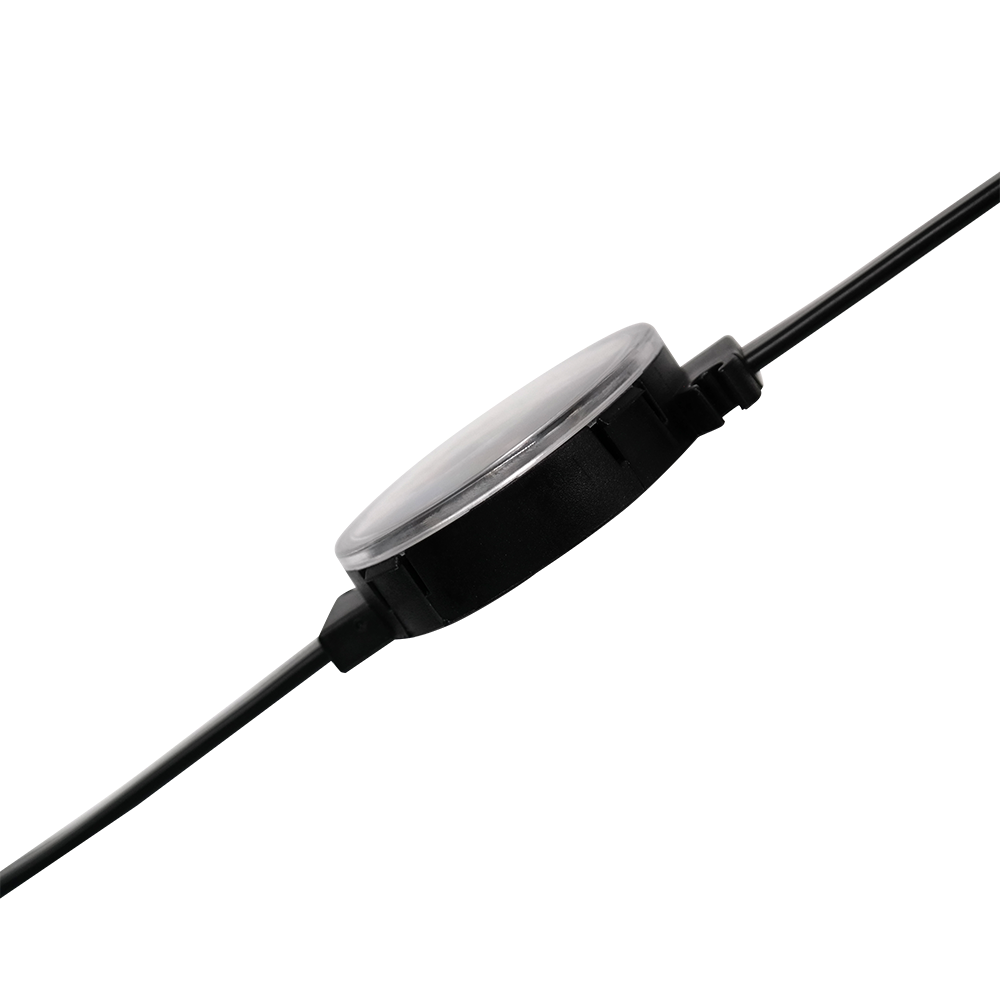

Outdoor LED Point Lights Waterproof Pixel Screen Transparent 6000K

Place of Origin : Guangdong, China

Brand Name : XQD

Certification : CE, RoHS, FCC

MOQ : 100 pieces

Price : $0.90/pieces 100-2999 pieces

Model Number : XQD-S50

Supply Ability : 50000PCS/Day

Delivery Time : 10 work days

Packaging Details : XQD PACKING/customized

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Color Temperature(CCT) : 6000K (Daylight Alert)

Input Voltage(V) : DC 24V

Warranty(Year) : 3-Year

Type : LED Modules

Support Dimmer : Yes

Lighting solutions service : Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation

Luminous Efficacy(lm/w) : 33

Lifespan (hours) : 50000

Working Time (hours) : 50000

Product Weight（kg） : 0.032

Chip Material : SMD

Emitting Color : full color

Luminous Intensity : 10000

Luminous Flux(lm) : 48lm

Optical Attenuation(%) : 3

Power Dissipation : 0.3W

Color Temperature : full color

Usage : Indoor &Outdoor

Voltage : 24v dc

Color : RGB RGBW

Material : PVC

IP Grade : ip67

IC Type : DMX512/CPI

Warranty : 3Years

Beam angle : 120

Contact Now

LED Point Light Outdoor Waterproof Pixel Screen Transparent Good Flexible

Product features:

Identify lighting targets and scenes:
Clarify the purpose of dynamic lighting effects, such as attracting attention, creating atmosphere, conveying information, etc.
Consider the background and environment of the lighting scene, such as the appearance of the building, the surrounding landscape, weather conditions, etc.
Choose the right LED point light source:
Select the appropriate LED point light source according to the lighting target and scene, including color temperature, brightness, beam Angle, etc.
Consider the physical characteristics of the LED point light source, such as response time, drive current, etc.

S50 Dust proof engineering point light source Technical specifications

Basic product parameters		Product protection parameter
Product model	XQD-S50	Waterproof grade	IP65
Product size	Φ49.8mm*14.1mm	Shell flame retardant	V-0
Application environment	Indoor and outdoor	UV resistance grade	4
Product weight	About39.4g	Salt spray test	Salt spray resistance
Shell material	PC	Impact resistance	IK10
Maximum number of connections	80PCS/string	Electrical safety class	Ⅲ class
Center distance	Minimum 9CM	Safety certification	CE FCC ROHS
Average product life	50,000 hours	Operating temperature	-40℃-55℃
Optional accessories	Aluminum groove, steel wire buckle
Wire core	2x0.75mm²+3x0.3mm²
Wire material	PVC
PCB material	FR-4 Fiberglass board
Product optical parameters		Electrical parameters of the product
LED color	RGB	Operating voltage	DC24V
Luminous Angle	120°	Rated power	1.44W
Color resolution	3*16bit	Supporting system
Lamp bead	SMD3535*7LED	Control system	DMX512
Pixel point luminous flux	48lm	Power supply system	DC24V Constant voltage
luminance	18.8cd

Applications:
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.

ShenZhen XinQiDan Optoelectronic CO.,LTD. With advanced lighting technology and equipment, can provide efficient, energy-saving, environmentally friendly lighting solutions, with independent research and development of technology or products.
